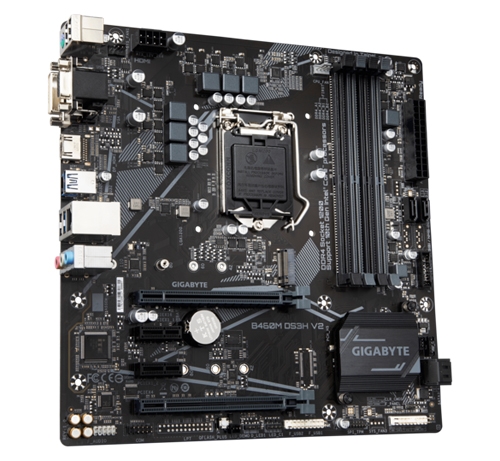

Mainboard GIGABYTE B460M DS3H V2

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

B460M DS3H V2

CPU hỗ trợ

Intel

Chipset

B460

RAM hỗ trợ

4 x DDR4 DIMM slots, support up to 128GB
Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules

Intel® Core™ i5/i3/Pentium®/Celeron®processors: Support for DDR4 2666/2400/2133 MHz memory modules

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots

Ổ cứng hỗ trợ

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x RGB LED strip headers
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x serial port headers
1 x parallel port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

LAN / Wireless

Intel® GbE LAN chip (1000 Mbit/100 Mbit)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 24.4cm
